Have you ever wondered how to measure the health of your car battery? A multimeter can help! This handy tool lets you check the battery’s voltage. But do you know what settings to use for the best results? Knowing the right multimeter setting for car battery testing is key.
Imagine you’re getting ready for a long road trip. The last thing you want is a dead battery. With the right multimeter setting, you can catch issues before they become big problems. Learning how to use a multimeter for your car battery is simpler than it sounds.
Did you know that a fully charged car battery should read around 12.6 volts? Many people don’t realize this. Understanding these numbers helps you keep your car running smoothly. Knowing what to do with your multimeter can empower you as a car owner. Let’s explore how to make the most of this tool!
Essential Multimeter Setting For Car Battery Testing
Using a multimeter to check your car battery is easy! Start by setting the multimeter to DC voltage and choose a range that includes 12 volts. This range shows the battery’s voltage clearly. Next, connect the red probe to the positive terminal and the black probe to the negative terminal. Did you know a healthy battery reads around 12.6 volts? Keep an eye on these numbers to ensure your battery is in good shape!
Understanding Multimeters
Explanation of multimeter components and functions. Types of multimeters: digital vs. analog.
A multimeter is a handy tool for measuring electricity. It has a screen, dials, and leads that connect to different parts. The screen shows readings like voltage, current, and resistance. A multimeter can be digital, which is easier to read, or analog, which uses a needle and dial—kind of like a speedometer, but for electricity! Talking about needles, did you know that if they point to zero, you might need more coffee—or a new battery?
| Type | Pros | Cons |
|---|---|---|
| Digital | Clear display | Can run on batteries |
| Analog | No battery needed | Readings can be tricky |
Both types show important information, helping you check your car battery without doing the tongue test! That’s a shocker, right?
Importance of Testing Your Car Battery
Benefits of regular battery testing for vehicle performance. Signs of a failing car battery.
Keeping an eye on your car battery is like checking your fridge for snacks; it helps prevent unexpected surprises! Regular battery testing boosts your vehicle’s performance and keeps it running smoothly. A healthy battery gives your car the energy it needs. If you notice signs like dim headlights or difficulty starting your engine, it may be time to test the battery. Don’t wait until your car gives you the silent treatment!
| Signs of a Failing Battery | What to Look For |
|---|---|
| Dim Headlights | Your lights might not shine as bright as a star! |
| Slow Engine Crank | When your engine gets lazy, it’s like waking a sloth! |
| Corrosion on Terminals | It might look like your battery is wearing a funky hat. |
Remember, a little testing now can save you from big troubles later. Stay charged and avoid the drama of a sudden car refusal!
Preparing to Test Your Car Battery
Safety precautions when handling car batteries. Tools needed for testing with a multimeter.
Before checking your car battery, practice safety. Wear gloves and goggles to protect your eyes and skin. Batteries can spill acid. Keep pets and children away from the area. Gather these tools:
- Multimeter
- Safety goggles
- Gloves
- Vehicle manual
With these steps, you are ready to test your car battery safely.
What safety tips should I follow?
Always wear gloves and goggles. Keep kids and pets away. Make sure you are in a well-lit area. This helps prevent accidents and keeps everyone safe.
Setting Up Your Multimeter
How to select the correct settings for voltage testing. Understanding the probes and their connections.
Before you start testing your car battery, set your multimeter correctly. First, dial it to the “DC Voltage” setting. This will help you measure battery voltage. You typically want to aim for the 20V range; it’s like picking the right cone for your ice cream! Next, plug in the black probe to the “COM” port and the red probe to the “VΩ” port. These connections are key—think of them as making sure your shoes are tied before a race!
| Probe Color | Port |
|---|---|
| Black | COM |
| Red | VΩ |
Once set up, touch the black probe to the battery’s negative (-) terminal and the red probe to the positive (+) terminal. Simplicity at its best! When you read the display, remember: a healthy battery should show around 12.6V or more. If it’s lower, your battery might be feeling a little drained—like you after gym class!
Testing Your Car Battery Voltage
Stepbystep guide to measuring voltage. Interpreting voltage readings and what they indicate.
Measuring your car battery’s voltage is easy and important. First, grab a multimeter. Set it to DC voltage (that’s the straight line, not the squiggly one). Next, connect the red probe to the positive terminal (+) and the black probe to the negative terminal (-). Voila! You should see a number on the screen.
A reading of 12.6 volts or more means your battery is healthy. Below 12.4 volts? It’s getting tired. If it’s less than 12 volts, it’s time to recharge or get a new battery. Remember, even batteries deserve a break sometimes!
| Voltage Reading | Battery Status |
|---|---|
| 12.6V and above | Healthy |
| 12.4V – 12.5V | Needs a charge |
| 12V – 12.3V | Critical – replace soon! |
Now go forth and check that battery! You’ll feel like a car doctor in no time!
Testing Battery Load and Capacity
How to perform a load test with a multimeter. Indicators of battery health based on load testing results.
To test your car battery’s load, start with a multimeter. Set it to measure voltage. Next, turn on your car and let it run. Check the battery voltage while the car is off and running. A healthy battery should show 12.6 volts or more when off and about 14.2 volts when running. If it’s lower, it may be time for a new battery.
- 12.6 volts (healthy battery, off)
- 14.2 volts (healthy battery, running)
- Below 12 volts (weak battery)
These readings tell you if your battery can handle its load. Battery health is key for trouble-free driving.
What is a load test for a car battery?
A load test checks if a battery can hold enough power. It helps you know how strong your battery is. Higher voltage means a healthier battery!
Key Indicators of Battery Health
- Strong voltage readings.
- No drops below 12 volts.
- Stable voltage when the car runs.

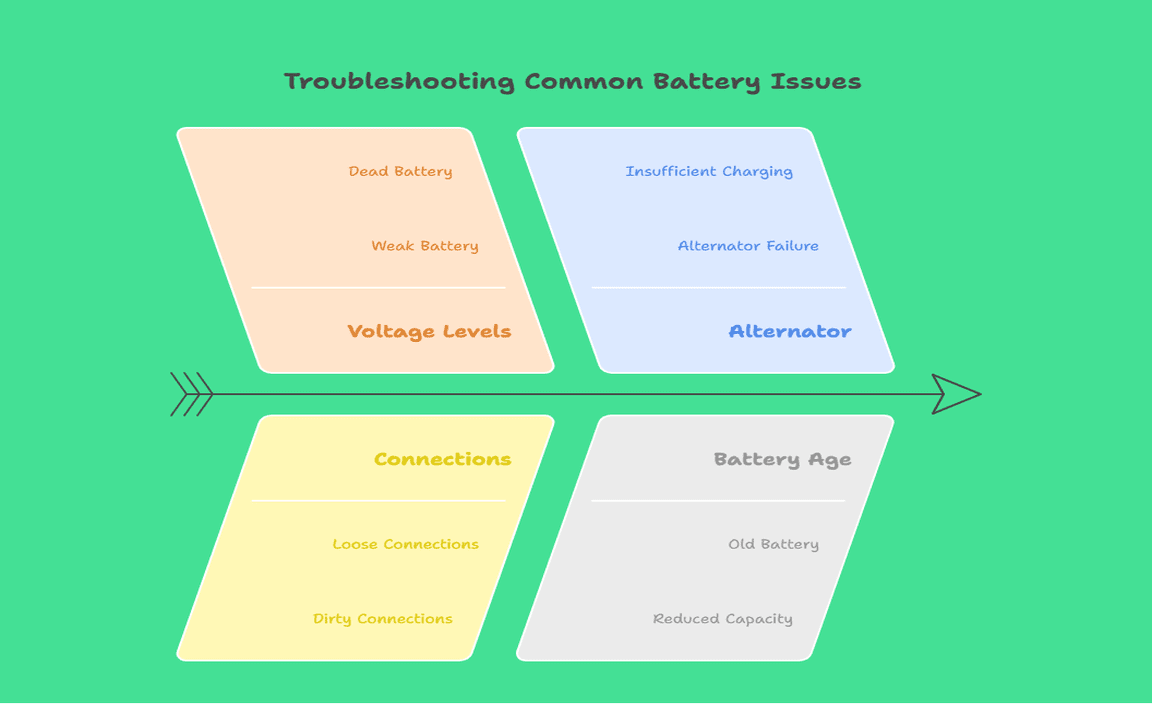

Troubleshooting Common Battery Issues
Identifying issues based on multimeter readings. Recommendations for solutions and further actions.
Using a multimeter can help find battery problems quickly. If the reading shows less than 12.4 volts, the battery may be weak. A reading below 12 volts could mean it’s dead. Here are some tips to follow:
- Recharge or replace the battery if the voltage is low.
- Check connections to make sure they are clean and secure.
- Test the alternator if the battery still struggles after charging.
Gathering these readings will lead you closer to a solution. A healthy battery should read between 12.4 and 12.7 volts. Regular checks can save you from bigger issues down the road.
How do you know if your battery is good or bad?
Check the multimeter reading; if it’s over 12.4 volts, the battery is good. If it’s lower, it might need recharging or replacing.
Maintaining Your Car Battery
Tips for prolonging battery life. When to consult a professional for battery issues.
Taking care of your car battery can help it last longer. Here are some tips to keep it healthy:
- Keep the battery clean from dirt and grime.
- Check the connections to make sure they are tight.
- Avoid short trips; longer drives recharge the battery well.
Sometimes, you may need a professional’s help. Call an expert if:
- You notice leaks or corrosion.
- Your battery is more than 3 years old.
- The car struggles to start.
When Should You Call for Help?
If you see signs of trouble, don’t wait too long to ask for help. It’s important to keep your car running well!
Conclusion
In conclusion, knowing how to set a multimeter for your car battery is essential. Start by choosing the DC voltage setting. Then, connect the probes correctly to get an accurate reading. This helps you check the battery’s health and charge level. For more tips, explore online guides or ask an expert. Taking these steps keeps your car running smoothly!
FAQs
What Multimeter Setting Should I Use To Measure The Voltage Of A Car Battery?
To measure the voltage of a car battery, you should set your multimeter to “DC Voltage.” This is often shown as “V” with a straight line. Make sure the range is set to 20 volts if you can adjust it. Then, touch the red probe to the positive side of the battery and the black probe to the negative side. You will see the battery’s voltage on the screen!
How Can I Check The Current Draw Of A Car Battery Using A Multimeter?
To check the current draw of a car battery with a multimeter, first, turn off the car. Then, set the multimeter to the “amps” setting. Next, remove one battery cable, usually the negative one. Connect the multimeter leads to the battery terminal and the cable. This shows how much electricity the car uses when off.
What Is The Correct Procedure For Testing A Car Battery’S Condition With A Multimeter?
To test a car battery with a multimeter, first turn off the car. Next, set the multimeter to “DC Volts.” Then, touch the red lead to the positive battery terminal and the black lead to the negative terminal. Look at the screen on the multimeter. If it shows around 12.6 volts or more, the battery is healthy!
How Do I Interpret The Multimeter Readings For A Healthy Car Battery Versus A Failing One?
To check a car battery with a multimeter, you need to look at the voltage reading. A healthy battery usually shows between 12.4 to 12.7 volts when the car is off. If it shows less than 12.4 volts, the battery might be failing. When the car is running, a good battery should read around 13.7 to 14.7 volts, showing it’s charging well. If you see lower numbers, that could mean trouble!
Can I Use A Multimeter To Test A Car’S Charging System While The Engine Is Running, And If So, What Settings Should I Use?
Yes, you can use a multimeter to test a car’s charging system while the engine is running. First, set the multimeter to measure voltage (usually the V setting). Then, place the red probe on the positive battery terminal and the black probe on the negative terminal. A good reading should show around 13.5 to 14.5 volts. If it’s lower, there might be a problem with the charging system.
