The right power adapter is crucial for your LED strip lights to work safely and shine their brightest. Don’t guess – this guide makes choosing and using the perfect power adapter simple and stress-free, ensuring your lights look amazing without any fuss.
Ever bought those awesome LED strip lights, only to feel a bit lost when it comes to powering them up? You’re not alone! It can feel like a puzzle trying to figure out exactly what kind of power adapter – sometimes called a power supply or transformer – your new lights need. Getting this wrong can mean dimmer lights, or worse, a safety hazard. But don’t worry, it’s much simpler than it looks.
Think of the power adapter as the middleman. Your LED strip light needs a specific amount of power, delivered in a certain way, and the adapter makes sure the power from your wall outlet matches those needs exactly. It’s the unsung hero that keeps your decorative lighting shining bright. In this guide, I’ll walk you through everything you need to know, step by step, so you can get your LED strips up and running with confidence. We’ll cover how to find the right adapter, and what makes it so essential.
Why Your LED Strip Lights Need the Right Power Adapter
It might seem like any old adapter would do, but when it comes to LED strip lights, the power adapter is far from just a simple plug. It’s a vital component that ensures your lights perform beautifully and, most importantly, safely. Let’s break down why getting this pairing right is a “genius essential.”
Keeping Your Lights Shining Bright
LED strip lights are designed to operate on a specific voltage, usually either 12V or 24V DC (Direct Current). The power adapter’s job is to take the AC (Alternating Current) power from your wall socket and convert it into the correct DC voltage that your LED strips can use.
If the voltage is too low, your lights will be dim, and might not even turn on properly. If the voltage is too high, you risk burning out the LEDs, damaging the strip, and potentially even causing a fire. The adapter ensures a steady, correct flow of power, so your lights look their best for their entire lifespan.
Safety First, Always!
This is where the “genius essential” truly shines. Using an underpowered or incorrect adapter is a major safety risk.
Overheating: An adapter that isn’t rated for the total power draw of your LED strip will work overtime. This extra strain generates excessive heat, which can melt the adapter’s casing, damage nearby materials, and lead to electrical fires.
Short Circuits: A poorly made or incompatible adapter might not have adequate protection. This can lead to short circuits, which can spark, damage your lights, and pose a fire risk.
Damage to LED Strips: As mentioned, the wrong voltage can instantly fry your LED strips, making them useless and costing you money.
A good quality, correctly specified power adapter will have built-in safety features like over-voltage protection, over-current protection, and short-circuit protection. These features are there to protect both your lights and your home.
Efficiency Matters
The right power adapter is also designed to be efficient. This means it converts the wall power to the necessary voltage with minimal energy loss. Less energy loss means less wasted electricity, which saves you money on your energy bills, and generates less heat, contributing to safety.
Understanding the Key Specs: What to Look For
When you’re looking at LED strip lights and their power needs, you’ll see a few key numbers. Don’t let them scare you! They’re like the ingredients list for your lights. Knowing these will help you pick the perfect power adapter.
Voltage (V)
What it is: Voltage tells you how much “push” the electricity has. Think of it like water pressure in a pipe.
For LED Strips: Most common LED strips run on 12V DC or 24V DC. You must match the voltage of the power adapter to the voltage of your LED strip. Using a 24V adapter on a 12V strip will destroy it instantly. Using a 12V adapter on a 24V strip will likely result in very dim or no light.
Power Adapter Label: Look for “Output: 12V DC” or “Output: 24V DC” on the adapter’s label.
Wattage (W) or Amperage (A)
What it is: This tells you how much power the LED strip uses or how much power the adapter can provide.
Wattage (W) is Voltage (V) multiplied by Amperage (A). It’s the total power consumed.
Amperage (A) is the flow rate of electricity. Think of it as how wide the pipe is for the water to flow.
For LED Strips: The product description of your LED strip will usually tell you how many watts it uses per meter (e.g., “8 Watts per meter”). You need to calculate the total wattage your strip will consume.
Calculation: (Watts per meter) x (Total length of LED strip in meters) = Total Wattage Needed.
For Power Adapters: The adapter will be rated in Watts (W) or Amps (A).
If rated in Watts: The adapter’s Wattage rating must be at least 20% higher than the total wattage your LED strip(s) require. This is a safety margin to prevent the adapter from being overloaded and overheating.
If rated in Amps: You can convert the strip’s wattage to amps: Amps = Watts / Volts. Then, ensure the adapter’s Amperage rating is at least 20% higher than the total amperage your strip(s) need.
Example: If you have a 5-meter LED strip that uses 10W per meter:
Total Wattage Needed = 10 W/m 5 m = 50 Watts.
You need a power adapter rated for at least 50W 1.20 = 60 Watts. A 60W or 72W adapter would be a good choice.
How to Calculate What You Need (The Easy Way)
1. Check Your LED Strip: Find out its voltage (12V or 24V) and its power consumption (Watts per meter).
2. Measure Your Strip: How long will your LED strip be in total?
3. Calculate Total Strip Wattage: Multiply the Watts per meter by the total length.
4. Add a Safety Buffer: Multiply that total wattage by 1.20 (that’s 20% more). This new number is the minimum wattage your power adapter needs.
5. Match the Voltage: Ensure the adapter’s output voltage is the same as your LED strip’s voltage.
Pro Tip: It’s always better to have a power adapter that’s slightly more powerful (higher wattage) than you strictly need. This ensures it runs cooler and lasts longer.
Common Power Adapter Types for LED Strip Lights
There are a few common styles of power adapters you’ll find. Each has its advantages depending on your setup.
Wall Adapters (Plug-in Adapters)
These are the most common and user-friendly type. They look like a standard laptop charger or phone charger brick. You plug the adapter into the wall, and it has a cable with a connector (often a barrel plug, commonly 5.5mm x 2.1mm) that plugs directly into your LED strip or a controller.
Pros:
Very easy to set up – just plug and play.
No complex wiring required for most applications.
Widely available in various wattages and voltages.
Often have built-in safety features.
Cons:
Might not be suitable for very long runs or high-power applications where a dedicated power supply is better.
The visible plug and brick can sometimes be unsightly.
Enclosed Power Supplies (Box or Brick Style)
These are more robust units, often found in a metal or plastic casing. They are typically used for larger installations or when you need to power multiple LED strips. They usually have input terminals for connecting to mains power (though some come with a plug) and output terminals (screw terminals) for connecting to your LED strips.
You can find these styles from reputable manufacturers like Mean Well, which are highly regarded in the lighting and electronics industries for their reliability and safety standards. For example, a Mean Well HLG-60 series power supply is a common choice for many LED applications, offering various wattage and voltage options within a durable enclosure commonly seen in commercial and DIY installations.
Pros:
More durable and professional-looking.
Better for higher power requirements and longer runs.
Often designed for installation inside enclosures or cabinets (ensure ventilation!).
Dedicated terminals for secure wiring connections.
Cons:
May require basic electrical wiring knowledge to connect.
Can be larger and bulkier than wall adapters.
Generally more expensive than simple plug-in adapters.
Dimmer Adapters
Some power adapters also include a built-in dimmer function, allowing you to control the brightness of your LED strip directly from the adapter. Others are designed to work with separate LED dimmers.
Pros:
Convenient for controlling brightness without extra accessories.
Can create different moods and save energy.
Cons:
May have slightly reduced efficiency compared to a standard adapter.
Ensure the dimmer is compatible with your specific LED strip type (e.g., some dimmers only work with certain PWM dimming technologies).
Step-by-Step: How to Choose and Connect Your Power Adapter
Choosing and connecting the right power adapter for your LED strip lights doesn’t have to be complicated. Follow these steps to get it done safely and correctly.
Step 1: Determine Your LED Strip’s Power Requirements
This is the most critical step. You need to know two things about your specific LED strip:
1. Voltage: Is it 12V or 24V? This is usually printed on the strip itself or on its packaging.
2. Total Wattage:
Find the “Watts per meter” (W/m) rating for your strip.
Measure the total length of the LED strip you plan to use in meters.
Calculate the total wattage: `Total Watts = (Watts per meter) × (Total length in meters)`
Example: For a 5-meter strip rated at 10 W/m, the total wattage is 10 W/m × 5 m = 50 Watts.
Step 2: Calculate the Required Power Adapter Capacity
You can’t just buy an adapter that exactly matches your strip’s wattage. You need some wiggle room.
1. Add a Safety Margin: Multiply your total strip wattage by 1.20 (this adds a 20% buffer).
`Minimum Adapter Wattage = Total Strip Wattage × 1.20`
Example (Continuing from above): Minimum Adapter Wattage = 50 Watts × 1.20 = 60 Watts.
2. Choose an Adapter: Look for an adapter that meets or exceeds this calculated wattage. It’s okay if it’s higher, but never lower.
For our example, a 60W, 72W, or even 100W adapter would work, as long as it has the correct voltage.
Step 3: Select the Correct Voltage and Connector Type
1. Voltage: Make absolutely sure the adapter’s output voltage matches your LED strip’s voltage (12V or 24V). There’s no guessing here – it must be an exact match.
2. Connector:
Most common plug-in adapters use a barrel connector. The most standard size is 5.5mm x 2.1mm. Check what your LED strip connector (or its extension cable) expects.
If you’re using enclosed power supplies, they typically use screw terminals. You’ll need to strip the ends of your LED strip wires (or extension wires) and secure them in the terminals.
Step 4: Connecting the Power Adapter to Your LED Strip
The connection method depends on the type of adapter you chose.
For Plug-in Wall Adapters:
1. Identify the Components: You’ll have the LED strip (which might have a bare wire end, a barrel connector, or a specific plug), the power adapter (with a barrel plug), and possibly an extension cable or a small controller.
2. Connect Adapter to Strip:
If your strip has a female barrel connector, simply plug the adapter’s male barrel plug into it.
If your strip has bare wires and your adapter has a barrel plug, you might need a barrel connector adapter or small wire connectors to join them. Ensure you connect the positive (+) wire from the adapter to the positive (+) terminal on the strip, and the negative (-) wire to the negative (-). Getting polarity wrong can damage your strip.
If you’re using a controller, connect the power adapter to the controller’s power input, and then connect the LED strip to the controller’s output. Always follow the controller’s diagram.
3. Plug In and Test: Plug the power adapter into a wall outlet. Your LED strip should light up.
For Enclosed Power Supplies:
This method requires a bit more care and potentially basic wiring tools.
1. Safety First! Ensure the Power Supply is Unplugged from Mains Power!
2. Identify Terminals: Enclosed power supplies have input terminals (usually labeled L for Line, N for Neutral, and often a ground symbol) for mains AC power, and output terminals (usually labeled + or V+ for positive, and – or V- for negative) for the DC output to your LED strip.
3. Connect Mains Power:
If your power supply came with a plug, you might just plug it into the wall.
If it has bare wire input terminals, you’ll need to connect a mains power cord to these. This involves stripping the power cord wires (live/line, neutral, and ground) and securing them to the appropriate terminals. If you are not comfortable with mains wiring, you should seek professional help.
4. Connect LED Strip to DC Output:
Strip the ends of the wires on your LED strip (or the separate DC output wire if using one).
Connect the positive (+) wires from your LED strip to the positive (+) terminal on the power supply.
Connect the negative (-) wires from your LED strip to the negative (-) terminal on the power supply.
Ensure a secure connection to prevent shorts. Use the provided screws or clamps on the terminals.
5. Mount and Secure: Mount the power supply in a safe, well-ventilated location, away from moisture and flammable materials.
6. Test: Once everything is securely connected, plug the power supply into the mains power outlet. Check your LED strips.
Important Note on Wire Gauge: For long runs of LED strips or if you’re wiring multiple strips together, you might need thicker gauge wires to carry the power efficiently without voltage drop. A good resource for understanding wire gauges and their load capacities can be found on sites like Alabama Wire Company’s wire gauge charts, which provide valuable technical data for choosing the right wires for your project.

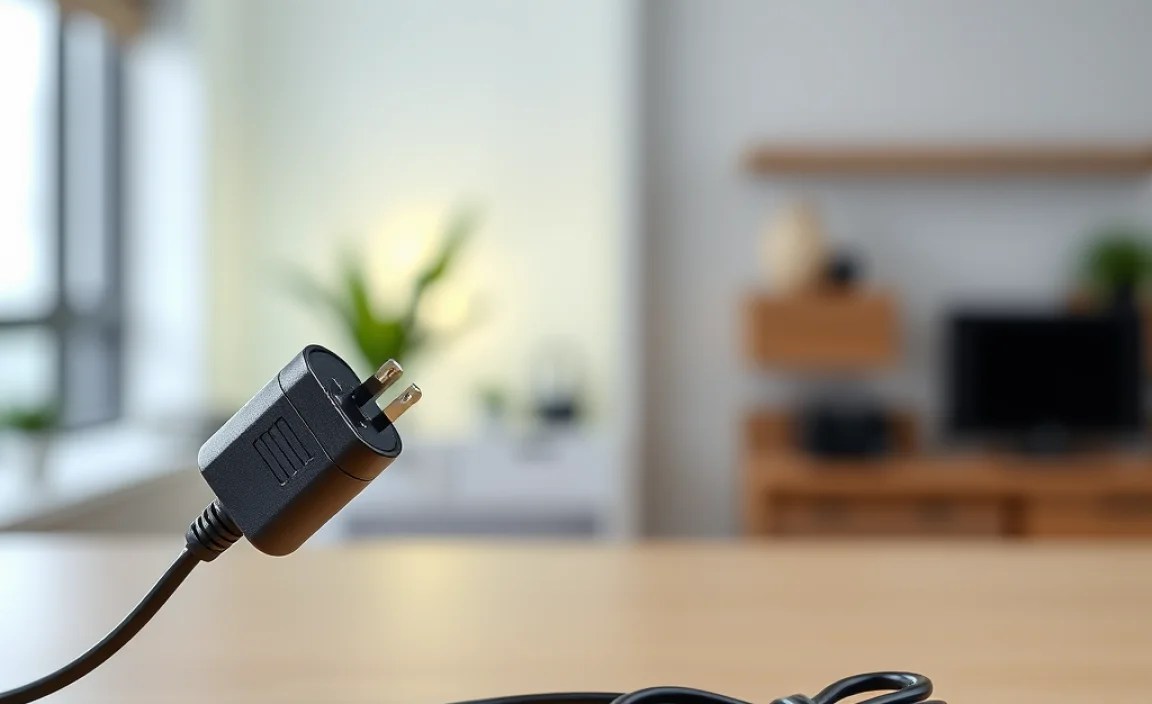

Troubleshooting Common Power Adapter Issues
Even with careful selection, sometimes things don’t work perfectly. Here are a few common problems and how to fix them:
| Problem | Possible Cause | Solution |
| :————————— | :———————————————————————————————————— | :——————————————————————————————————————————————————————————————– |
| LED Strip is dim | 1. Incorrect voltage adapter (too low)
2. Underpowered adapter (not enough wattage/amperage)
3. Long wire run causing voltage drop
4. Poor connection | 1. Ensure adapter voltage exactly matches strip voltage.
2. Replace with a higher wattage/amperage adapter (check calculations, add buffer).
3. Use thicker gauge wire for runs over 3-5 meters, or use a higher voltage strip (24V) if possible.
4. Check all connections for tightness and correct polarity (+ to +, – to -). |
| LED Strip flickers | 1. Loose connection
2. Adapter struggling to keep up (underpowered)
3. Faulty adapter or strip segment | 1. Re-seat all connections firmly.
2. Upgrade to a more powerful adapter.
3. Test with a different known-good adapter, or test a small segment of the strip with its own adapter. |
| LED Strip doesn’t turn on | 1. No power to the outlet
2. Adapter unplugged or faulty
3. Incorrect polarity wiring
4. Frayed or broken wire
5. Strip itself is faulty | 1. Test outlet with another device.
2. Check adapter connection at the wall and to the strip. Try a different adapter if available.
3. Double-check your wiring connections for correct polarity.
4. Inspect all wiring for damage.
5. Test a small section of
