Quick Summary: Hooking up a second car battery for your audio system is a straightforward process that provides clean, stable power for booming bass and clear sound without draining your primary battery. Follow these simple steps with the right equipment for a powerful, reliable upgrade.
Ever felt that dimming of your headlights when the bass drops? Or worried about your car struggling to start after a long listening session? Adding a second battery to your car’s audio system is a game-changer. It’s like giving your car’s electrical system a superpower boost, ensuring your music sounds its best without any of that power-related drama. Don’t worry if you’re not a car electrical wizard; this guide breaks it down into simple, manageable steps. We’ll walk you through everything you need to know, from choosing the right battery to making the final connections safely and effectively. Get ready to give your car audio the power it deserves!
Why a Second Battery for Your Car Audio?
When you crank up your car’s stereo, especially with powerful amplifiers, subwoofers, or extra speakers, it demands a lot of electrical energy. Your car’s original battery is designed to start the engine and run essential systems. While it can handle some extra load, pushing it too hard for too long, especially when the engine isn’t running, can lead to a drained primary battery. This means no more music and potentially a car that won’t start. A second battery acts as a dedicated power reservoir for your audio equipment. It stabilizes the voltage, preventing those annoying dips and spikes that can affect sound quality and even damage your expensive stereo components. Think of it as a dedicated power station for your tunes.
Benefits of a Dual Battery Setup
Consistent Power: Your amplifiers and head unit receive a steady, clean power supply, leading to improved sound quality and performance. No more flickering lights or audio distortion when the bass hits hard.
Reduced Strain on Primary Battery: Your main car battery is freed up to do its primary job: starting the engine and powering critical vehicle systems. This means fewer worries about a dead battery after a long music session.
Increased System Stability: A dedicated power source helps your audio equipment operate at its peak efficiency, protecting it from voltage drops and surges that can cause damage.
More Power for Bigger Systems: If you plan to install more powerful amplifiers or a more extensive sound system, a second battery is often essential to handle the increased demand.
* Peace of Mind: Enjoy your music louder and longer, knowing you won’t be stranded with a dead battery.

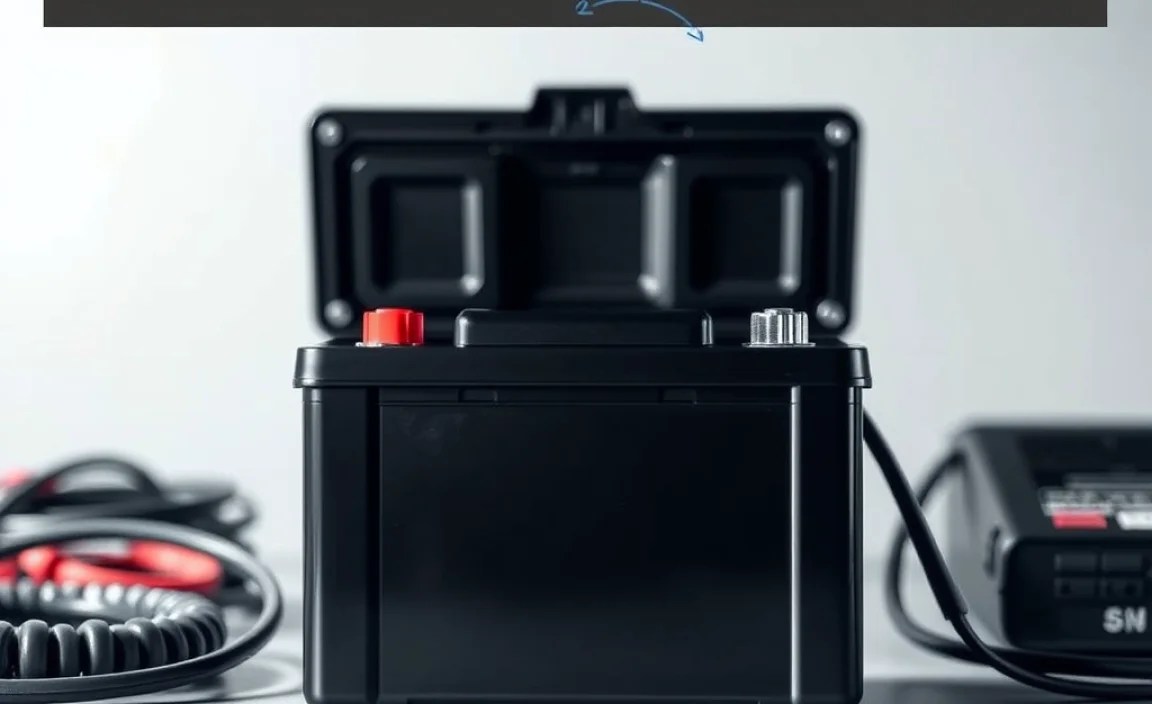

Understanding Battery Types
Not all batteries are created equal, and for a car audio setup, you’ll want a battery designed for deep cycles – meaning it can be discharged and recharged many times without damage.
Standard Car Battery (SLI – Starting, Lighting, Ignition)
These are what come in most cars. Their primary job is to deliver a big burst of power to start the engine. They aren’t built for the constant, deep discharges that an audio system might demand. Using one as your secondary power source isn’t ideal and can shorten its lifespan significantly.
Deep Cycle Battery
This is what you’re aiming for. A deep cycle battery is designed to provide a steady amount of current over a long period and can handle being discharged much more deeply than an SLI battery. They are built to be recharged repeatedly. The two main types are:
- Flooded Lead-Acid (FLA): The most common and often the most affordable deep cycle option. They require regular maintenance, like checking and topping up the water levels. They should always be installed upright and in a well-ventilated area as they can produce explosive hydrogen gas during charging.
- Absorbed Glass Mat (AGM): These are a type of sealed lead-acid battery. The electrolyte is absorbed into fiberglass mats, making them spill-proof and maintenance-free. They are more resistant to vibration and can be mounted in various positions (though upright is still recommended for optimal cooling). AGM batteries are more expensive than flooded ones but offer superior performance and safety for car audio applications. The National Highway Traffic Safety Administration (NHTSA) provides excellent resources on vehicle electrical systems, highlighting the importance of proper battery maintenance and type for overall vehicle health and safety. https://www.nhtsa.gov/
Battery Placement Considerations
Where you put your second battery is crucial. Ideally, it should be close to your amplifiers to minimize the distance the power has to travel, which reduces voltage drop. Common locations include:
- In the trunk
- Underneath a truck bed
- In the spare tire well (if space allows and ventilation is considered)
Safety Note: Always ensure the battery is securely mounted to prevent it from shifting during driving. If you’re placing it inside the cabin or trunk, ensure it’s in a sealed compartment to prevent any gases from entering the passenger area.
What You’ll Need: Tools and Materials
Before you begin, gather all your tools and materials. Having everything ready makes the process smoother and safer.
Tools
- Socket wrench set
- Adjustable wrench
- Wire stripper/crimper
- Battery terminal puller (optional, but helpful)
- Drill and drill bits (if new mounting holes are needed)
- Multimeter (essential for checking voltage and continuity)
- Screwdrivers (Phillips and flathead)
- Work light or headlamp
- Safety glasses and gloves
- Wire brush for cleaning terminals
- Zip ties or wire loom for neatness
Materials
- Deep Cycle Battery: Choose an AGM battery for a maintenance-free and spill-proof experience.
- Battery Box: A secure, ventilated box to house the battery, especially if mounting in the passenger compartment or trunk.
- Battery Cables: High-quality, appropriately sized (gauge) cables for connecting the batteries and wiring to your amplifier. The length will depend on your chosen placement. Check amperage ratings; a reputable guide from Soundstream, a car audio manufacturer, offers insights into proper wiring gauge selection based on system demands. https://www.soundstream.com/ (Note: actual external links may vary in availability)
- Terminal Connectors: Ring terminals or C-clamps to connect cables to battery posts securely.
- In-line Fuse Holder and Fuse: Crucial safety device to protect your audio system and wiring. The fuse size should match your amplifier’s requirements.
- Battery Isolator or Voltage-Sensing Relay (VSR): To prevent the second battery from draining the primary battery when the engine is off.
- Mounting Hardware: Bolts, nuts, washers, and brackets to secure the battery box and battery.
- Wire: Additional wiring as needed for connections.
Step-by-Step Guide to Hooking Up Your Second Battery
Step 1: Disconnect the Existing Battery
Safety first! Before you touch any wires, disconnect the negative (-) terminal of your car’s primary battery. This prevents accidental short circuits while you’re working. Then, disconnect the positive (+) terminal.
Step 2: Choose and Prepare the Second Battery Location
As discussed, select a suitable location. Ensure it’s secure and, if it’s inside the car, properly ventilated. If you’re using a battery box, mount it firmly in your chosen spot. If you need to drill new holes for mounting, do so carefully, ensuring you don’t drill into any crucial vehicle components or fuel lines. A diagram of typical car electrical systems can be helpful here, showing common areas to avoid. https://www.autozone.com/ (For general automotive diagrams and resources).
Step 3: Mount the Second Battery
Place your deep cycle battery securely inside its mounting location or battery box. Use appropriate straps, brackets, or bolts to ensure it cannot move. This is a critical safety step.
Step 4: Install the Battery Isolator or VSR
This device is key to managing your dual battery system. It allows the alternator to charge both batteries when the engine is running but separates them when the engine is off, preventing your audio system from draining your starting battery. Follow the manufacturer’s instructions for your specific isolator or VSR. Generally:
- The isolator’s “start” or “input” terminal connects to the positive (+) terminal of your primary battery.
- The isolator’s “auxiliary” or “output” terminal connects to the positive (+) terminal of your second battery.
- The isolator will likely have a ground connection that needs to be attached securely to the vehicle’s chassis.
Step 5: Run the Power Cables
Now, you’ll run the main power cables. You’ll need a positive (+) cable and a ground (-) cable.
- Positive (+) Cable: Connect one end of a thick gauge positive cable to the positive (+) terminal of your secondary battery. Route this cable towards your amplifier’s location in your vehicle. Use grommets to pass the cable through any firewall openings to protect it from chafing. Secure the cable with zip ties or wire loom to keep it tidy and prevent it from dangling.
- Ground (-) Cable: Connect one end of a thick gauge ground cable to the negative (-) terminal of your secondary battery. Route this cable to a solid chassis ground point near your amplifier. Scrape away any paint from a section of the car’s metal body to ensure a clean, bare metal connection. Secure this connection tightly.
Step 6: Connect to the Amplifier
This is where your audio system comes into play.
- Connect Positive (+) to Amplifier: Run the positive (+) cable from the secondary battery to the main power input terminal on your amplifier(s).
- Connect Ground (-) to Amplifier: Run the ground (-) cable from the secondary battery to the main ground input terminal on your amplifier(s). Ensure this ground connection is as short as possible and to a clean, bare metal surface on the vehicle’s chassis. A poor ground is a common cause of audio problems.
Step 7: Install the In-line Fuse
This is a critical safety step. Install the in-line fuse holder as close as possible to the secondary battery’s positive (+) terminal. Wire it into the positive (+) power cable that runs to your amplifier. Insert the appropriately sized fuse into the holder. This fuse will blow, safely cutting power, if there’s a short circuit or surge, protecting your equipment and vehicle.
Step 8: Reconnect the Primary Battery and Test
Double-check all your connections to ensure they are tight and secure. Make sure no bare wires are exposed where they shouldn’t be. Once you are confident everything is correct, reconnect the positive (+) terminal of your primary battery, followed by the negative (-) terminal.
Turn on your car’s ignition. Check if your vehicle’s essential systems are working normally. Then, turn on your car stereo. Listen for any unusual noises and check if your audio system is functioning correctly. Use your multimeter to check the voltage at the secondary battery and at the amplifier’s power terminal. You should see a stable voltage, usually around 12.6-14.4V with the engine running.
Wiring Configurations for Dual Batteries
There are a few main ways to connect your primary and secondary batteries. The method you choose depends on your specific needs and goals.
Configuration 1: Simple Parallel Connection (Not Recommended for Audio)
This involves directly connecting the positive terminals of both batteries together and the negative terminals. While it increases the total capacity, it also means both batteries will discharge and charge together. If one battery fails or is deeply discharged, it can draw down the other, leading to potential issues. This is generally not advised for a dedicated audio system due to the lack of isolation.
Configuration 2: Battery Isolator / Voltage Sensing Relay (VSR) Setup (Recommended)
This is the most common and recommended method for dual battery systems in vehicles with audio upgrades. The isolator (or VSR) acts as a smart switch.
How it works:
- When the alternator is charging and voltage rises above a certain threshold (typically around 13.2V), the isolator closes the circuit, connecting the primary and secondary batteries to charge both.
- When the engine is turned off and the voltage drops below a certain threshold (typically around 12.8V), the isolator opens the circuit, separating the batteries. This ensures your starting battery is always preserved for engine starting.
This setup provides the best of both worlds: ample power for your audio system when the engine is running, and protection for your main battery when it’s not.
Configuration 3: Manual Battery Switch
A manual battery switch allows you to choose which battery to use or to combine them. While offering flexibility, it requires user attention. You’d typically start the car on the primary battery, then switch to the secondary battery (or a combined setting) for running accessories or audio. You’d switch back to the primary before shutting off the engine to ensure it has enough charge. This is less common for dedicated car audio setups as it requires constant user interaction but can be useful in certain RV or camper van applications.
Configuration Table: Isolation Methods
| Method | Pros | Cons | Best For |
|---|---|---|---|
| Battery Isolator / VSR | Automatic, safe separation; preserves starting battery; increases system power when engine is on. | Requires installation; more complex than a simple connection. | Dedicated car audio systems, RVs, campers needing reliable power management. |
| Manual Battery Switch | Full user control over battery selection; can combine batteries. | Requires constant user attention; easy to forget to switch, potentially draining battery. | Situations where manual control is preferred or for specific power demands. |
| Simple Parallel (No Isolation) | Increases total capacity; simplest to wire. | No separation, risk of draining both batteries; not recommended for sensitive audio systems or critical starting needs. | Very basic accessory power where battery health is not a primary concern. |
Maintaining Your Dual Battery System
Once installed, a dual battery system requires some basic maintenance to ensure longevity and performance.
- Regular Inspection: Periodically check all connections for tightness and corrosion. Clean terminals with a wire brush if necessary.
- Check Battery Electrolyte (for Flooded Batteries): If you opted for flooded lead-acid batteries, check the electrolyte levels every few months. Top up with distilled water only, ensuring the plates are covered. Wear NiOsh safety gear as per guidance from battery manufacturers like Odyssey Battery or Optima Batteries.
- Monitor Voltage: Use your multimeter occasionally to check the voltage of both batteries. A healthy, charged battery should read around 12.6V when fully charged and at rest.
- Fuse Checks: Make sure your in-line fuse is intact and that you have spares on hand.
- Listen for Issues: Pay attention to any unusual sounds from your audio system or any signs of the car struggling to start, which could indicate a problem with the system.
Troubleshooting Common Issues
Even with careful installation, you might encounter a few hitches. Here’s how to tackle them.
- Flickering Lights / Audio Distortion: This usually points to a voltage drop. Check:
- All cable connections for tightness.
- The gauge of your power and ground wires – are they thick enough for the amperage?
- Your ground connections – are they solid and to bare metal?
- The health of your batteries.
- Car Won’t Start:
- Is the isolator or VSR functioning correctly? Check its indicator lights if it has them.
- Is the primary battery healthy?
- Are the connections between the primary battery and the rest of the car’s systems intact?
- Audio System Not Working:
- Check the fuse in your in-line fuse holder.
- Ensure all power and ground connections to the amplifier are secure.
- Verify the remote turn-on wire is connected and functioning.
- Batteries Not Charging:
- Check the connection between the alternator and the primary battery.
- Verify the isolator or VSR is wired correctly and functioning.
- Ensure the secondary battery itself isn’t faulty.
Frequently Asked Questions (FAQ)
Q1: Can I use a regular car battery as my second battery?
No, it’s not recommended. Regular car batteries (SLI) are designed for starting, not for deep, repeated discharges like an audio system requires. Using one for audio will significantly shorten its lifespan and may not provide stable power.
