Grounding the battery is very essential because the bad ground is such a headache and will cause an electrical fire. Therefore, if you own a vehicle or want to be a good vehicle driver, you must have proper knowledge of grounding.
Getting the proper grounding can be confusing at different times. There are various questions you may have in your head about grounding and this is by which you could be confused like, what is grounding, why grounding should be done, where to ground negative battery cable, how to do it, the disadvantage of doing it (if any), etc.
The article you’re reading is the right one if you want to find out more about grounding. Before going into the details, let’s take a tour of the basic knowledge of grounding.
What is a Ground Connection
The ground connection on your car is the connection from the minus battery terminal to the car body and from the car body to the engine. It is a negative electrical connection that powers up the unit and it is almost always going to end up at the chassis of the car.

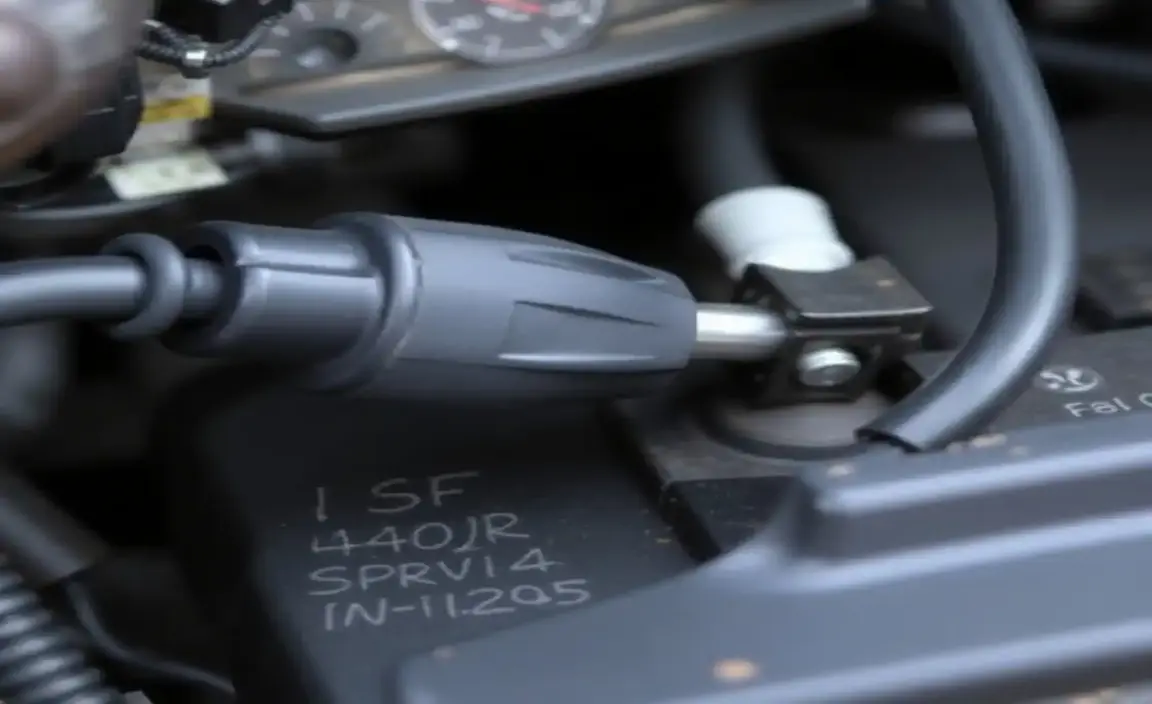

Ground Connections – Why are They So Important
The electric system on your car functions properly when there is a closed loop from plus to minus. Each electric system appliance and everything else is included in that loop. Thus, if the ground connection is bad or you have a weak contact somewhere, you will experience interference in the loop and have problems.
Symptoms of Bad Ground
One of the most common symptoms of bad ground is heavy cranking. Therefore, if the cranking sounds strange when you turn the key, there may be an issue with the ground connection. A major issue is diagnosing the problem as the symptoms are very similar as you have a bad car battery on a bad starter. So before you go and spend a lot of money either buying a new car battery or repairing the car starter check the ground connection.

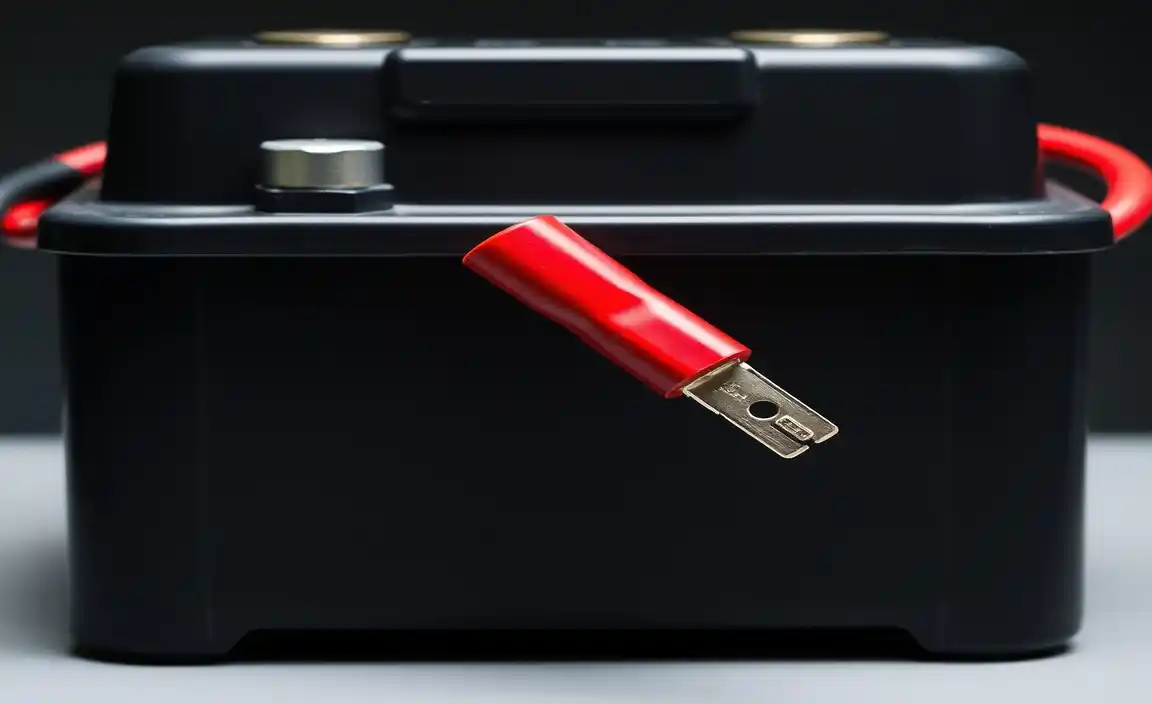

Where to Ground the Negative Battery Cable

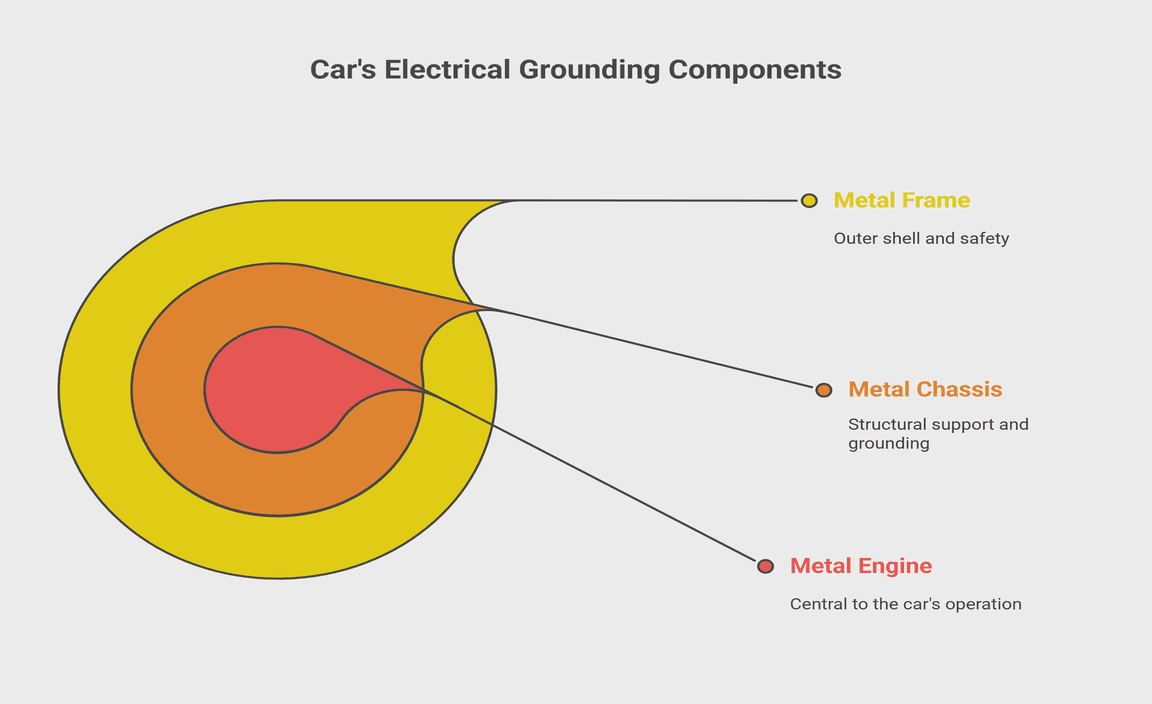

On our car, we have three major components that are conductive. We have
- Metal frame,
- Metal chassis, and
- A metal engine.
All these conduct electricity.
Connect the Major Components
Negative cable attachments ground your engine, and these straps serve as ground connections. You can use wire as well. Because you have a path to your battery, you do not have to run extra wires or more than you need to. Additionally, it’s not dangerous.
Run it Properly
You can safely run your negative through your conductor, the right chassis body, and the right engine rather than running a wire back to the battery. If you run that negative to any one of these components and not straight to the battery, then that’s what we call your ground. With this, you can run it to your frame and screw it right there. Using a screwdriver, you can attach it to where it is grounded, on your chassis.
You can run it to your engine and find a grounded spot. The wire can be run back to the battery cable if you want it to. Otherwise, if you run the water back to the battery, it simply becomes negative, but if you run the wire through the components, it becomes ground. So when someone says ground it to chassis ground at the frame that’s what they’re talking about. You attach the negative cable to the conductor so that it eventually reaches the negative side of the battery. That’s basically it.
Adequate Ground
The fat-positive cable on most cars goes straight to the starter solenoid. Some vehicles have external solenoids, but it is still the same. When we have a big fat cable that leads to the starter solenoid, we need to ground it properly. Grounding with a one gauge cable would be adequate.
Although there is no rule that says you have to run the same gauge on the ground as the positive cable, if you want adequate grounds, just to be safe, run the same gauge as the positive cable. Your negative cable or main grounding connects directly to your engine.
For example, on a 1970 Chevelle, they installed threaded holes in the casting into which you could screw a bolt. This is the ideal way to run your big battery cable directly to the engine.
Therefore, when the cars are branded and perfect for the factory, they will not always be ground to the block. Rather, they will ground to a valve cover ahead and the ones you might not like or whenever they ground to alternator brackets or any other type of engine bracket.
Therefore, whenever we connect anything to the engine block, it conducts electricity back to the battery on the negative side. Your alternator and starter, since they are bolted directly to your engine, have a direct ground to your battery, which means you do not have to run any ground to them.
Frequently Asked Questions
- Why does the negative battery cable need to be grounded?
Ans: Negative grounding is necessary for cars because lacking negative grounding can translate into flickering lights, low voltage, dead batteries, and visible damage to the ground straps, etc.
- Does the negative wire go to the ground?
Ans: The one section of the negative wire goes to the engine and underhood area.
- What happens if the ground wire is not connected?
Ans: As a result of a grounded wire not being connected, the vehicle may have difficulty starting and you could experience an electrical fire.
- What is the difference between the negative ground and positive ground?
Ans: Positive grounding uses the positive terminal as the ground and the negative terminal as the live terminal. On the other hand, the negative terminal acts as the negative grounding, whereas the positive terminal serves as the live terminal.
Final Words
These are the most important things you should know about grounding a negative battery cable. If you get any further queries, let us know in the comment section below.
